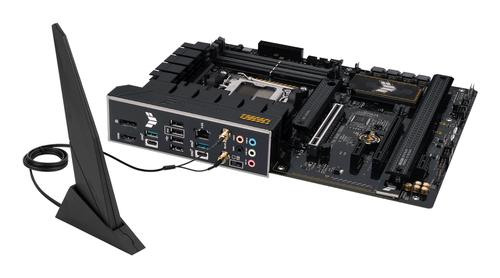

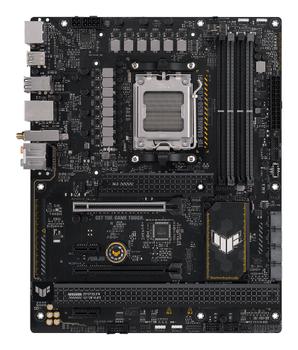

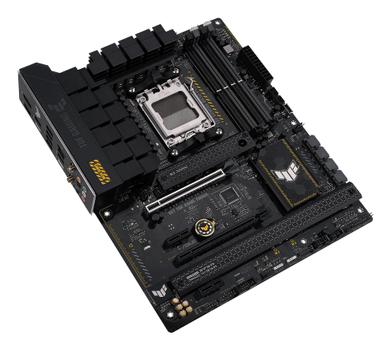

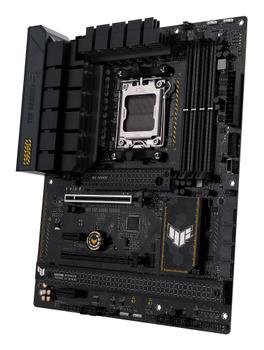

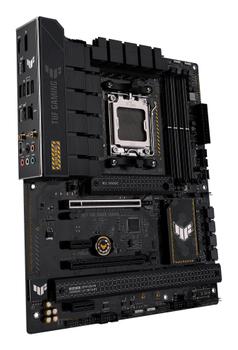

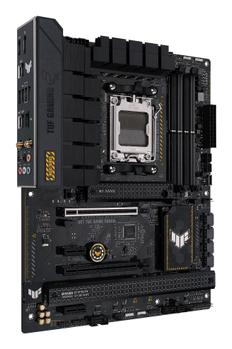

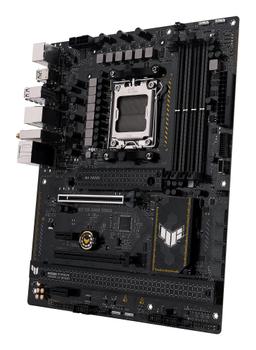

ASUS TUF GAMING B650-PLUS WIFI (ATX, B650, AM5)

TUF GAMING B650-PLUS WIFI

• 12(60A)+2(60A)+2 power stages with enlarged VRM heatsinks
• PCIe® 5.0 for M.2 storage
• DDR5 memory module support
• USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 1 Type-C® header
• 2.5 Gb Ethernet
• WiFi 6
• Two-Way AI Noise Cancelation

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• AMD B650

• 4 x DIMM, Max. 128GB, DDR5
• 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 4.0/3.0 x16 slot(s)
• AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD B650 Chipset
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0/3.0 x1 slots

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD B650 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 port(s) (4 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Power pre-regulator reduces power input noise to ensure consistent performance
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit

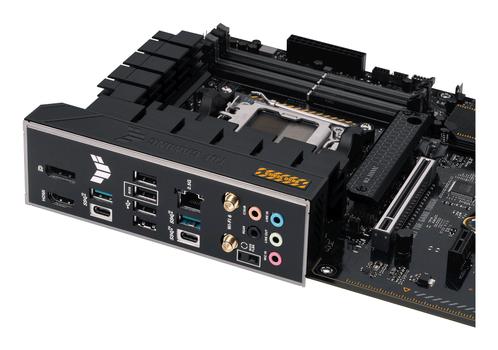

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 port(s) (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 4 x 4-pin Chassis Fan header(s)
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
  • 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 header(s)
  • 1 x Aura RGB header(s)
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header

• ASUS TUF PROTECTION
  • DIGI+ VRM (Digital power design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeDIMM
• Aura Sync
  • Aura RGB header(s)
  • Addressable Gen 2 header(s)

• ASUS Exclusive Software
  • Armoury Crate
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4
    • Power Saving
    • Two-Way AI Noise Cancellation
  • AI Suite 3
    • TurboV EVO
    • DIGI+ VRM
    • PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyAsus
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode

• 256 Mb Flash ROM, UEFI AMI BIOS

• Windows® 11
• Windows® 10 64-bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
