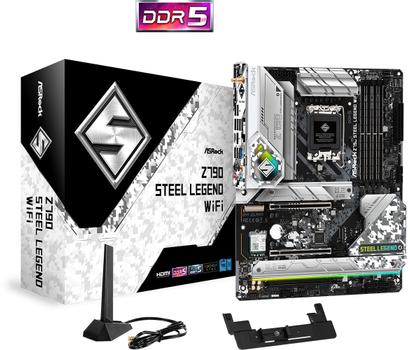

ASROCK Z790 Steel Legend WiFi

Z790 Steel Legend WiFi

• Supports 13th Gen & 12th Gen Intel® Core™ Processors
• 16+1+1 Phase Power Design, SPS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 6800+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

• Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
• RockSolid Durability
  • 16+1+1 Power Phase, 60A SPS for VCore+GT
  • Flexible Integrated I/O Shield
  • Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity
• 2.5G LAN,
  • 802.11ax WiFi 6EModule
• EZ Update
  • ASRock Auto Driver Installer EZ Troubleshooter
  • ASRock Post Status Checker

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

• Intel® Z790

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 nonECC, unbuffered memory up to 6800+(OC)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

• 256Mb AMI UEFI Legal BIOS with GUI support

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control

• 802.11ax WiFi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports DualBand 2x2 with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MUMIMO

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  • 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
• Supports AMD CrossFire™
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 8 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

• 1 x USB 3.2 Gen2x2 TypeC (Front)
• 1 x USB 3.2 Gen2 TypeC (Rear)
• 1 x USB 3.2 Gen2 TypeA (Rear)
• 12 x USB 3.2 Gen1 (8 Rear, 4 Front)
• 3 x USB 2.0 (3 Front)

• 1 x eDP Signal Connector
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4pin)
• 1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)
• 5 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (HiDensity Power Connector)
• 2 x 8 pin 12V Power Connectors (HiDensity Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x Thunderbolt™ AIC Connector (5pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 TypeA Port (10 Gb/s)
• 1 x USB 3.2 Gen2 TypeC Port (10 Gb/s)
• 8 x USB 3.2 Gen1 Ports
• 1 x RJ45 LAN Port
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

• Software
  • ASRock Motherboard Utility (ATuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

• 1 x User Manual
• 2 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 4 x Screws for M.2 Sockets
• 1 x Graphics Card Holder

• ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm
• 2oz Copper PCB

• Microsoft® Windows® 10 64bit / 11 64bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
• CEC Tier II ready
