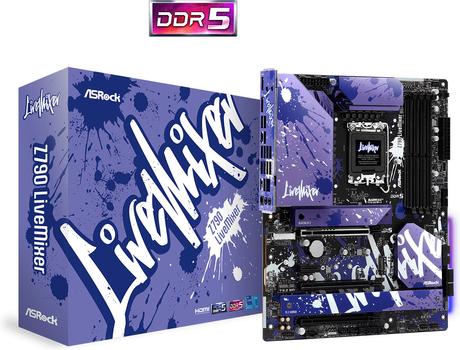

Z790 LiveMixer Features: Supports 13th Gen & 12th Gen Intel® Core™ Processors 14+1+1 Phase Power Design, SPS for VCore+GT 4 x DDR5 DIMMs, supports up to 6800+(OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front) Realtek 2.5G LAN Specifications: Unique Feature Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 RockSolid Durability 14+1+1 Power Phase, 60A SPS for VCore+GT with Enlarged Heatsink Armor Flexible Integrated I/O Shield Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore Ultrafast Connectivity 2.5G LAN ASRock Lightning Gaming Ports EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker CPU Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Chipset Intel® Z790 Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 nonECC, unbuffered memory up to 6800+(OC) Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 3.0 BIOS 128Mb AMI UEFI Legal BIOS with GUI support Graphics Intel® Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Slots CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode 1 x PCIe 3.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire™ Storage CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices USB 1 x USB 3.2 Gen2x2 TypeC (Front) 2 x USB 3.2 Gen2 TypeC (Rear) 2 x USB 3.2 Gen2 TypeA (Rear) 8 x USB 3.2 Gen1 (4 Rear, 4 Front) 10 x USB 2.0 (6 Rear, 4 Front) Connector 1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4pin) 1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector (HiDensity Power Connector) 2 x 8 pin 12V Power Connectors (HiDensity Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 TypeA Ports (10 Gb/s) 2 x USB 3.2 Gen2 TypeC Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.) 6 x USB 2.0 Ports 1 x RJ45 LAN Port 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) Software and UEFI Software ASRock Motherboard Utility (ATuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer Accessories 1 x User Manual 2 x SATA Data Cables 5 x Screws for M.2 Sockets Form Factor ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm 2oz Copper PCB OS Microsoft® Windows® 10 64bit / 11 64bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
