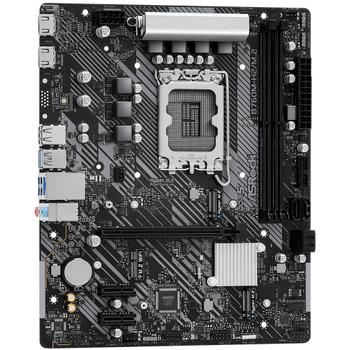

ASROCK B760M-H2/M.2 1700 mATX 2xHDMI DDR5 retail

B760M-H2/M.2

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 5+1+1 Power Phase
• 2 x DDR5 DIMMs, Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
• 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

• Superb Productivity
  • Dual Channel DDR5
• Rock-Solid Durability
  • 5+1+1 Power Phase
  • ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
• Ultrafast Connectivity
  • 2.5G LAN
• EZ Update
  • ASRock Auto Driver Installer

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

• Intel® B760

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

• 128Mb AMI UEFI Legal BIOS with GUI support

• Intel® Xe Graphics Architecture (Gen 12)
• 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control

• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

• Chipset:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• 2 x Antenna Mounting Points
• 2 x HDMI Ports
• 4 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

• Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

• Microsoft Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
