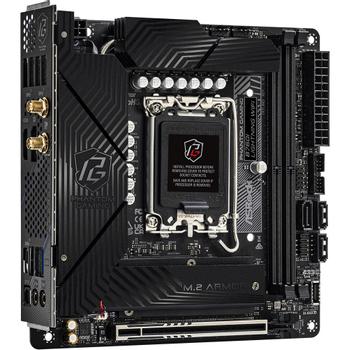

ASROCK B760I LIGHTNING WIFI

B760I Lightning WiFi

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors
• 14+1+1 Phase Power Design, 110A SPS for VCore+GT
• 2 x DDR5 DIMMs, Supports Dual Channel, up to 8600+ (OC)
• 1 PCIe 5.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 2 Hyper M.2 (PCIe Gen4 x4), 2 SATA3
• 1 USB 3.2 Gen2 Type-C (Rear)
• 1 USB 3.2 Gen2 Type-A (Rear)
• 1 USB 3.2 Gen1 Type-C (Front)
• 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 2 USB 2.0 (Front)
• Phantom Gaming 2.5G LAN
• 802.11axe Wi-Fi 6E + Bluetooth

• Superb Productivity
  • PCIe Gen5 (Graphics)
  • Dual Channel DDR5
• Rock-Solid Durability
  • Server-Grade Low-Loss PCB
  • 14+1+1 Power Phase, SPS for VCore+GT with Enlarged Heatsink Armor
  • Flexible Integrated I/O Shield Ultrafast Gaming
  • 2.5G LAN, 802.11axe Wi-Fi 6E Module
• EZ Update
  • ASRock Auto Driver Installer

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

• Intel® B760

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 8600+(OC)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

• 128Mb AMI UEFI Legal BIOS with GUI support

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control

• 802.11axe Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe
• Supports Dual-Band 2x2 160MHz with extended 6GHz band support
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

• CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 3 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices

• Chipset:
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen2 Type-C (Rear)
  • 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 1 x USB 2.0 (Front)

• 2 x Addressable LED Headers
• 1 x Thermistor Cable Header
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis Fan Connectors (4-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

• Software
  • ASRock Motherboard Utility (Phantom Gaming Tuning)
  • ASRock Phantom Gaming LAN Software
  • ASRock Polychrome SYNC
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 1 x Screw for M.2 Socket
• 1 x Thermistor Cable

• Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• 8 Layer PCB
• 2oz Copper PCB

• Microsoft Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
