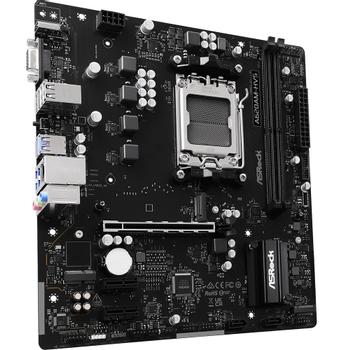

A620AM-HVS Features: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Dr.MOS Power Design, 2oz PCB 2 x DDR5 DIMMs, Supports Dual Channel, up to 6800+ (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 D-Sub Realtek ALC897 7.1 CH HD Audio Codec 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA3), 2 SATA3 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek Gigabit LAN Supports BIOS Flashback Specifications: Unique Feature Superb Productivity Dual Channel DDR5 Rock-Solid Durability 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset AMD A620A Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) Storage CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 2 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB CPU: 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: 1 x USB 3.2 Gen1 Type-C (Front) 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) 8 x USB 2.0 (4 Rear, 4 Front) Connector 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O 2 x Antenna Mounting Points 1 x D-Sub Port 1 x HDMI Port 4 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash Accessories 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket Form Factor Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB OS Microsoft Windows® 10 64-bit / 11 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
