ARCTIC COOLING Arctic Xtender (Black) mirrow black window with GPU vertical mount
|
|
ARCTIC COOLING Arctic Xtender (Black) mirrow black window with GPU vertical mount
-
Strømforsyning
0W
-
Type
Mid-tårn
-
Farve
Sort
|

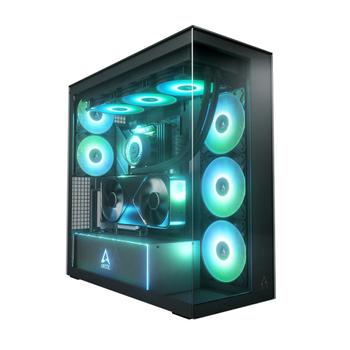

Xtender VG (Mirror Black)
Premium E-ATX PC Case with Vertical GPU Mounting
ACPCC00019A
Features:
- Functional I/O Panel
- No frills. Only the most important and frequently used ports are included.
- Tempered Glass Side Panels
- Large tempered glass windows provide a clear view of the hardware.
- A-RGB PSU Cover
- Integrated glass panel with 24 A-RGB LEDs illuminates the lower section of the case.
- Vertical Mounting for Graphics Cards
- Enables vertical GPU installation with a 160 mm PCIe Gen 4 riser cable.
- Flexible Mounting for Up to Six Drives
- Supports three 2.5" drives behind the motherboard tray. Removable drive cage holds two 3.5"/2.5" and one additional 2.5" drive.
- Includes Accessory Box
- Includes extra screws, cable ties and space for additional small parts.
- 3D Cable Pass-Throughs for Improved Aesthetics
- For clean cable routing behind the motherboard and a tidy interior.
- Clean Cable Management
- Smart cutouts and optimally placed cable straps for easy cable management.
Specifications:
Compatibility and Clearances
- Motherboard Support up to E-ATX (285 mm wide)
- Fan Support
- Top: 3x 120 mm | 3x 140 mm
- Side: 3x 120 mm | 3x 140 mm (included)
- Rear: 2x 120 mm (included)
- Radiator Support
- Top: 240 / 280 / 360 / 420 mm
- Side: 240 / 280 / 360 / 420 mm
- CPU Cooler up to 171 mm
- PSU ATX up to 318 mm (200 mm with HDD Cage)
- GPU up to 482 mm (337 mm with Side Radiator)
- Front I/O
- USB-C (USB 3.2 Gen2x1 - 10 Gbps)
- 2x USB-A (USB 3.2 Gen1x1 - 5 Gbps)
- 3.5 mm Jack (Line-In/Out)
- Power Button
- Warranty 6 Years
- Operating Ambient Temperature 0–40 °C
- Net Weight 15.4 kg
- Volume 64 l
- Dimensions 529 (L) x 231 (W) x 529 (H) mm
- Drive Bays
- Behind the Mainboard Tray: 3× 2,5"
- HDD Cage: 2x 3,5" or 2,5" + 1x 2,5"
- PCI Slots 7
- Cable Management Space 35 mm
- Dust Filters Top, Right Side
PSU RGB Stripe
- LEDs 24 × A-RGB Gen 2 LEDs
- Current | Voltage 0.89 A | 5 V DC
- Connector 3-Pin A-RGB Plug + Socket
Fan
- 2x P12 Pro A-RGB (pre-installed at rear)
- Speed 600–3000 rpm
- Air Flow 77 cfm | 131 m³/h
- Static Pressure 6.9 mmH2O
- Bearing Fluid Dynamic Bearing
- Current | Voltage 0.33 A | 12 V DC
- Connector 4-Pin Fan Plug + Socket
- RGB Specifications
- LEDs 12x A-RGB Gen 2 LEDs
- Current | Voltage 0.40 A | 5 V DC
- Connector 3-Pin A-RGB Plug + Socket
- 3x P14 Pro Reverse A-RGB (pre-installed at side)
- Speed 400–2650 rpm
- Airflow 98 cfm | 166.5 m³/h
- Static Pressure 5.1 mmH2O
- Bearing Fluid Dynamic Bearing
- Current | Voltage 0.40 A | 12 V DC
- Connector 4-Pin Fan Plug + Socket
- RGB Specifications
- LEDs 12 x A-RGB Gen 2 LED
- Current | Voltage 0.40 A | 5 V DC
- Connector 3-Pin A-RGB Plug + Socket
Vertical GPU Mounting Kit Specification (Only VG versions)
- Dimensions 196 (L) x 153 (W) x 140 (H) mm
- Supported Graphics Cards Up to 482 mm Length and 3-Slot Mounting
- Compatibility PCIe 4.0 and Backward Compatible
- Riser Cable 160 mm, PCIe 4.0 x16
- PCI Slots Required 7
