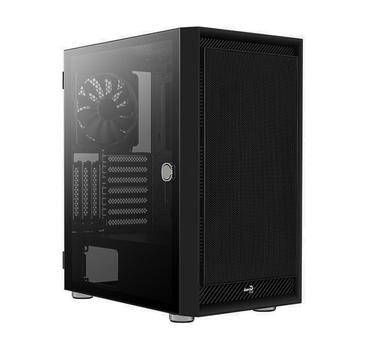

AEROCOOL Graphite black v1 MicroATX/ATX/MiniITX o.N Midi
|
|
AEROCOOL Graphite black v1 MicroATX/ATX/MiniITX o.N Midi
-
Strømforsyning
0W
-
Type
Mid-tårn
-
Farve
Sort
|
Graphite V1
Graphite-G-BK-V1
Features:
- Mesh front panel design allows for improved air ventilation
- Full tempered glass side panel with a convenient hinge mechanism and handle
- Three additional vertical expansion slots allow for vertical graphics card installation
- Supports Nvidia® Geforce RTX 30 series graphics cards
- Supports liquid cooling in the front, top, and rear of the case
- Supports air cooling in the front, top, and rear of the case
- Dual chamber design for improved ventilation
Specifications:
Model
Case Type
Color
Body Material
Front Panel Material
Steel Thickness
Motherboards
Case Dimensions (Internal) - 230 x 445 x 350mm (W x H x D)
Case Dimensions (Overall) - 230 x 460 x 406mm (W x H x D)
3.5” Drive Bays - 2 Max. (1 x 3.5” and 1 x 3.5”/2.5″)
2.5” Drive Bays - 4 Max. (3 x 2.5” and 1 x 2.5”/3.5”)
Expansion Slots
GPU Clearance - Supports GPU up to 348mm (without front radiator)
CPU Clearance - Supports CPU cooler up to 180mm
Air Cooling
- Front: 120mm x 3 or 140mm x 2 (Max.)
- Top: 120mm x 2 or 140mm x 2 (Max.)
- Rear: 120mm x 1 or 140mm x 1 (Max.)
Liquid Cooling
- Front: 120/240/280/360mm Radiator (Optional) (radiator length <394mm, thickness <38mm)
- Top: 120/240mm Radiator (Optional) (radiator length < 296mm) (memory module height < 50mm)
- Rear: 120mm Radiator (Optional) (GPU width <130mm if installed vertically)
I/O Ports - USB3.0 x 2 | HD Audio & Mic.
Internal Cable Management Depth
Power Supply - ATX PSU (Including cables, up to 191mm) (Optional)
